#10 Stainless Steel Self Tapping Screws, Number 10 SS Wood Screws manufacturers in China
supplies a full range of No 10 Tek Screws and Round Head Screws at Factory price in mumbai, China

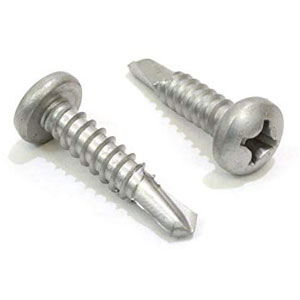

No 10 Stainless Steel Screws

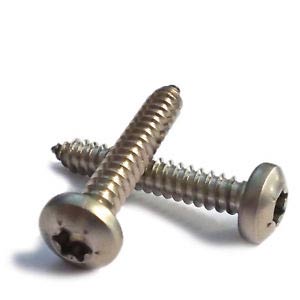

Number 10 Self Tapping Screws

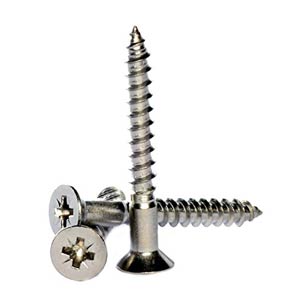

#10 Stainless Steel Wood Screws
 |
|

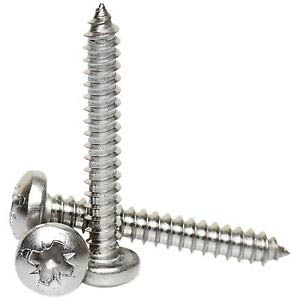

Number 10 Stainless Steel Screws |
Table of Content
- No 10 Stainless Steel Screws Specification
- Number 10 Stainless Steel Screws Price List
- Stainless steel screws #10 for sale
Screws that are labelled as no. 10 refer to the size of the screw. This being said, the no in No 10 Screws has no numerical value as such. Generally, No 10 Wood Screws are labelled as 10-32. The number 32 in the aforementioned term indicates that the screw is of a 32-thread pitch construction. 32 thread pitch No 10 Tek Screws details the presence of a certain number of threads per inch, which in the case of No 10 Round Head Screws stands at 32 threads per inch.
Usually, these screws are easily identifiable. One simply has to measure the diameter of No 10 Self Tapping Screws at exactly 3/16th of an inch or at a distance of 4.76 mm. In comparison to 12-24 rack screws, most manufacturers note that No 10 Unf Screws tend to be smaller and less coarse than the former. Since different materials may be used in their manufacture, the properties can vary. For instance, number 10 stainless steel screws produced in grade 316, may be used for marine engineering purposes, particularly because it has high corrosion resistance to several acid, alkaline and neutral solutions, while also resisting high velocity seawater.
On the other hand, grade 347 or even grade 321 No 10 Stainless Steel Screws are well suited for elevated temperature service. Unlike stainless steel alloys, copper based ones, such as No 10 Brass Screws could be used either for decorative purposes or for their high thermal and electrical conductivity and superior corrosion resistance properties.
ASTM A193/ ASME SA193 for SS Screws
| Grade | 18-8 Stainless Steel, 4.8, 8.8, A2, A4, A2-70; A4-70; A4-80 Screws |
|---|---|
| Stainless Steel Screw standard | ISO 14583 |
| No 10 Stainless Steel Screws standard | ISO 10642 |
| British standards | BS 57 |
| No 10 Stainless Steel Screws Size |
No 10 Stainless Steel Screws M2, M3, (M3.5), M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, M33, M36, M42, (M45), M48 to M160 and Custom Sizes |
| Length | 3 mm to 200 mm |
| Stainless Steel Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| Standard: |
DIN, ISO, JIS, GB, IS, BS, ASTM and all International Standards |
| DIN Standard | B.S. DIN 933, DIN 931, DIN 934, DIN 912, DIN 603, DIN 6923, DIN 970, DIN 7981, DIN 7982, DIN916, DIN 913, DIN 7985 |
| UTS – Unified Thread Standard | UNC, UNF, UNEF, UNS, NPT, NPTF |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Tolerance | +/-0.01mm to +/-0.05mm |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Type | Pan/ Round/ Oval/ Hex Head/ Truss head |
| Head | Pan head, flat head, oval head, hex head, phillips head |
| Finishing: | Zinc (yellow, white, blue, black), black oxide Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Finish | Per ASTM A380/A380M |
| Production process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| Origin and service-region: | European Origin of No 10 Stainless Steel Screws are Western European. However projects with eastern origin are possible on request. |
| Surface Coating: |
All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE. |
| Surface treatment |
|
| Top Manufacturers | SPAX® Screws, GKW, Unbrako, Kundan, APL, Sundaram Precision, Infasco, EBY Fastener Etc. |
| No 10 Stainless Steel Screws Packing: | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Why choose us? |
|
| MOQ | 5 pieces |
| Test Certificate: |
|
| Free Samples | Yes |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
| Other available material |
|
| Uses & application | Railway, Wind tower, Nuclear power, Automotive industry, Construction, Electronic industry |
|
8mm L, 10 PK
|
Price $20.14 / pkg. of 10
|
|
M4-0.70mm Cross Recessed Raised Cheesehead Screw, 8mm L, 100 PK
|
Price $8.39 / pkg. of 100
|
|
60mm L, 50 PK
|
Price $24.31 / pkg. of 50
|
|
8mm L, 50 PK
|
Price $6.18 / pkg. of 50
|
|
12mm L, 50 PK
|
Price $4.02 / pkg. of 50
|
|
50mm L, 100 PK
|
Price $20.45 / pkg. of 100
|
|
40mm L, 100 PK
|
Price $21.01 / pkg. of 100
|
|
45mm L, 100 PK
|
Price $18.23 / pkg. of 100
|
|
6mm L, 100 PK
|
Price $9.06 / pkg. of 100
|
|
50mm L, 100 PK
|
Price $25.60 / pkg. of 100
|
|
60mm L, 100 PK
|
Price $28.43 / pkg. of 100
|
|
Security Screw, Security, Carbon Steel, Pan Head Pin Torx, 19 mm, 4.8mm, No.10 Thread Size – Imperial No.10 |
£21.82 (25+)
|
|
Security Screw, Security, Carbon Steel, Pan Head Pin Torx, 50 mm, 4.8mm, No.10 Thread Size – Imperial No.10 |
£26.87 (25+)
|
Please note this is an approx Cost of No 10 Stainless Steel Screws in China. For final No 10 Wood Screws price list please mail us.
We are Manufacturer of wide range No 10 Self Tapping /Unf / Brass Screws in China.
|
METRIC – 3mm Diameter
mm in length |
IMPERIAL – Gauge Size 4
inches in length |
|
12
|
½
|
|
16
|
5/8
|
|
20
|
¾
|
|
25
|
1
|
|
30
|
1¼
|
|
40
|
1 ½
|
|
METRIC – 3.5mm Diameter
mm in length |
IMPERIAL – Gauge Size 6
inches in length |
|
12
|
½
|
|
16
|
5/8
|
|
20
|
¾
|
|
25
|
1
|
|
30
|
1¼
|
|
40
|
1 ½
|
|
METRIC – 4mm Diameter
mm in length |
IMPERIAL – Gauge Size 8
inches in length |
|
12
|
½
|
|
16
|
5/8
|
|
20
|
¾
|
|
25
|
1
|
|
30
|
1¼
|
|
35
|
1 3/8
|
|
40
|
1 ½
|
|
45
|
1 ¾
|
|
50
|
2
|
|
60
|
2 ½
|
|
70
|
2 ¾
|
|
METRIC – 4.5mm Diameter
mm in length |
IMPERIAL – Gauge Size 9
inches in length |
|
25
|
1
|
|
30
|
1¼
|
|
35
|
1 3/8
|
|
40
|
1 ½
|
|
45
|
1 ¾
|
|
50
|
2
|
|
60
|
2 3/8
|
|
70
|
2 ¾
|
|
75
|
3
|
|
METRIC – 5mm Diameter
mm in length |
IMPERIAL – Gauge Size 10
inches in length |
|
25
|
1
|
|
30
|
1¼
|
|
35
|
1 3/8
|
|
40
|
1 ½
|
|
45
|
1 ¾
|
|
50
|
2
|
|
60
|
2 3/8
|
|
70
|
2 ¾
|
|
75
|
3
|
|
80
|
3 ¼
|
|
90
|
3 ½
|
|
100
|
4
|
|
METRIC – 6mm Diameter
mm in length |
IMPERIAL – Gauge Size 12
inches in length |
|
30
|
1¼
|
|
40
|
1 ½
|
|
50
|
2
|
|
60
|
2 3/8
|
|
70
|
2 ¾
|
|
75
|
3
|
|
80
|
3 ¼
|
|
90
|
3 ½
|
|
100
|
4
|
|
110
|
4 3/8
|
|
130
|
5 1/8
|
|
150
|
6
|
|
BS 450 Cheese Head Machine Screw
|
BS 450 Fillister Head Machine Screw
|
|
BS 450 Countersunk Head Machine Screw
|
BS 450 Flat Head Machine Screw
|
|
BS 450 Pan Head Machine Screw
|
BS 450 Truss Head Machine Screw
|
|
BS 1083 Hex Head Cap Screw
|
BS 1083 Socket Set Screw
|
|
BS 2470 Socket Head Cap Screw
|
BS 2470 Button Head Socket Cap Screw
|
|
BS 2470 Flat Head Socket Cap Screw
|
BS 2470 Flat Point Socket Set Screw
|
|
BS 2470 Cup Point Socket Set Screw
|
BS 2470 Knurled Cup Point Socket Set Screw
|
|
BS 2470 Cone Point Socket Set Screw
|
|
Size 10 Stainless Steel Screws suppliers in Shenzhen, China, Buy from #10 Stainless Steel Wood Screws manufacturers in China
